Applications :

• The single core signalling earth and power cables are used in safety signalling equipment rooms.

Standards :

• SE774
• UNE 21027

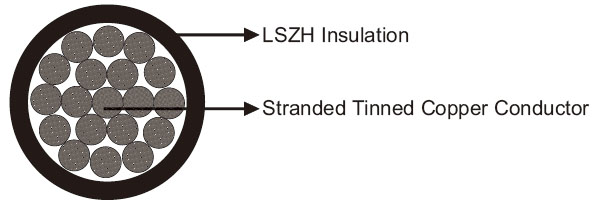

Construction :

• Conductors : Stranded tinned copper conductors.
• Insulation : Thermoplastic LSZH.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	1.0	4.0	6.0	16.0	35.0
  Maximum DC Conductor Resistance	Ω/km	18.2	4.7	3.11	1.16	0.529
  Voltage Rating	KV	0.45/0.75

Mechanical and Thermal Properties :

• Minimum Bending Radius : 7.5×OD.
• Temperature Range : -25°C to +85°C(during operation) ; -10°C to +70°C (during installation).

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	No. & Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
RF774-ES07Z-U-450/750V-1G1	1×1.0	1/1.13	0.6	4.0	28
RF774-ES07Z-U-450/750V-1G4	1×4.0	7/0.85	0.8	5.5	33
RF774-ES07Z-U-450/750V-1G6	1×6.0	7/1.04	0.8	6.1	90
RF774-ES07Z-U-450/750V-1G16	1×16.0	7/1.7	1.0	8.1	197
RF774-ES07Z-U-450/750V-1G35	1×35.0	19/1.53	1.2	10.9	389

  U is changed to K if the stranding class is changed from class 2 to class 5.



	Low Toxicity
